Temtop PMD 331 Air Quality Handheld Particle Counter 7 Channels

2 sold in last 8 hours
$999.00 $1,999.00

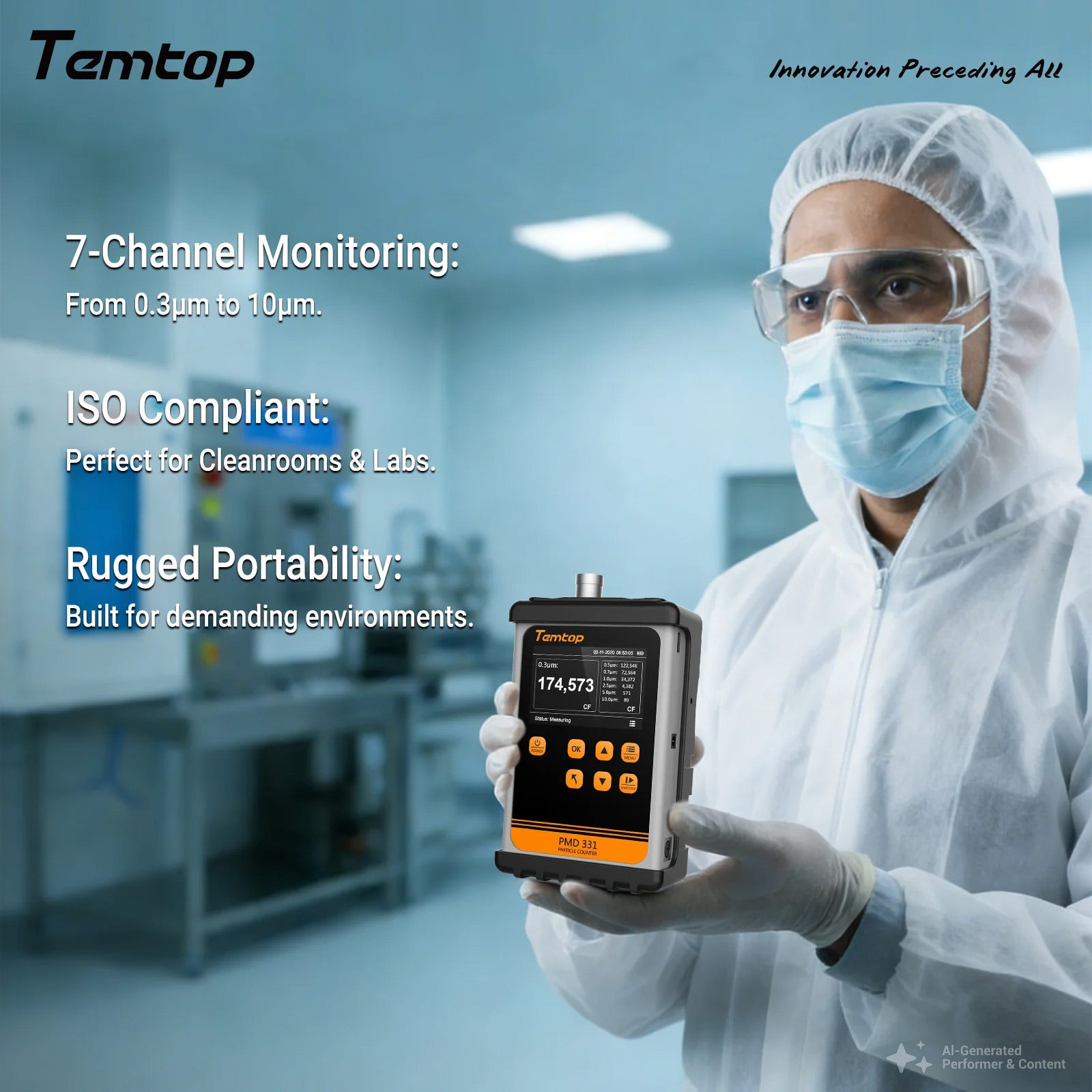

Temtop PMD 331 is an innovative device can measure the 7 mass range simultaneously 0.3μm/ 0.5μm/ 0.7μm/ 1μm/ 2.5μm 5μm/ 10μm. With a TFT LCD large screen and seven front panel buttons making the device very easy to read and operate. The PMD 331 can record up to 2,000.000 readings and...
Comparison Chart
$999.00

Free Shipping in USA

Shipping within 24 hours.

Free Standard Shipping: 3-5 Days for delivery.

Next Day Shipping Service Available in US: Orders placed before 12:00pm PST will be shipped on the same day!

Free Shipping in USA

We offer free shipping service in USA. The shipment will be arranged within 24 hours since your order is placed. The standard shipping time is 3-5 business days.

Nect-day shipping service is only available for orders that are placed before 12:00pm PST.

Fast Worldwide DHL Shipping.

It takes about 3 days for processing and 5-7 business days for delivery.

Worldwide Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Free & Fast Returns

1 year warranty & 30 Days easy & fast return.

Returns Policy

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply send email to support@temtopus.com. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Temtop PMD 331 is an innovative device can measure the 7 mass range simultaneously 0.3μm/ 0.5μm/ 0.7μm/ 1μm/ 2.5μm 5μm/ 10μm. With a TFT LCD large screen and seven front panel buttons making the device very easy to read and operate. The PMD 331 can record up to 2,000.000 readings and operate 8 hours in full charge. The unit has its own calibration mode and export function via USB or RS232.

Key Feature

  • PORTABLE PARTICLE COUNTER. Simultaneously measure and display 7 channels of particle sizes: 0.3μm 0.5μm 0.7μm 1μm 2.5μm 5μm 10μm. Counts up to 3,000,000 particles/ft³, meets requirements for HVAC, dust-free workshop, filter testing, IAQ investigation, air quality monitoring and etc.
  • RELIABLE RESULTS. Adopts 2.83L/min (1 CFM) pump suction laser particle sensor module, a more stable flow rate brings a more accurate measurement of particulate matters.

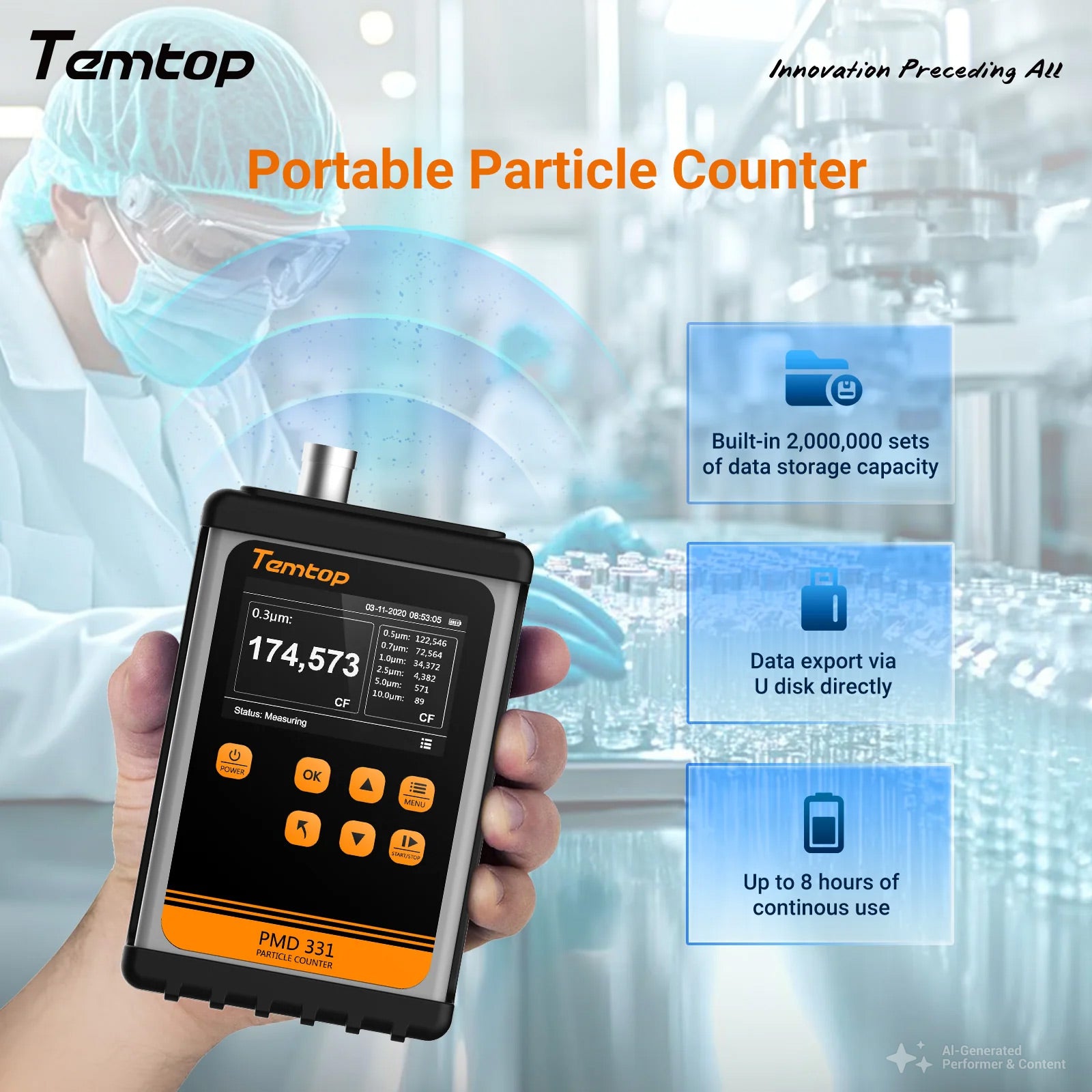

  • CLEAR DISPLAY AND DATA INTEGRATION. Large display for viewing particle data, you can choose a specific channel as the main view. Stores up to 2,000,000 records and easy export via USB flash drive or RS-232 Modbus.
  • ISO STANDARD AND MANUAL CALIBRATION. This model is ISO 21501-4 certified. Zero calibration and flow rate calibration are also accessible manually in the menu. (Certificate PDF)
  • WIDE APPLICATION. Trusted in HVAC, dust-free workshop, surgical rooms, filter testing, IAQ investigation, air quality monitoring and etc.

Temtop PMD 331 Particle Counter Professional Air Quality Monitor for Cleanroom Laboratory

Temtop PMD 331 has a wide range of applications such as cleaning rooms. filter testing, IQA investigation, air quality monitoring, etc...

This particle counter is composed of a Laser emitter, Silicon Photocell, Opto-mechanical Structure, Optic, Cutter, Air Pump, Filter Device, and Electronic Circuit.

    What is Included
    • 1 x Particle Counter
    • 1 x Filter Tube
    • 1 x USB Flash Drive
    • 1 x RS-232 Serial Converter Cable
    • 1 x RTU Protocol
    • 1 x Adapter
    • 3 x AC Power Cord
    • 1 x User Manual
    • 1 x Carrying Case
    Temtop PMD 331 Particle Counter Professional Air Quality Monitor for Cleanroom Laboratory

    Specification

    Sensor
    Principle: Laser Mie-scattering Principle
    Particle Size Range: 0.3μm, 0.5μm, 0.7μm, 1.0μm, 2.5μm, 5.0μm, 10μm
    Accuracy: ±10%
    Measuring Range: 0~3,000,000 particles/ft³ (0~105,900 P/L)
    Sampling Rate: 3~60s
    Flow rate: 2.83L/min
    Laser Emitter: 50mW, 780nm

    Product Details
    Data Storage: 2,000,000 points
    Communication Mode: USB/RS232
    Battery: Rechargeable lithium battery
    Charging time: 3.5 hours
    Working Temperature Range: 0~50℃
    Storage Temperature Range: -20℃~60℃
    Weight: 1.87 lb (850 g)

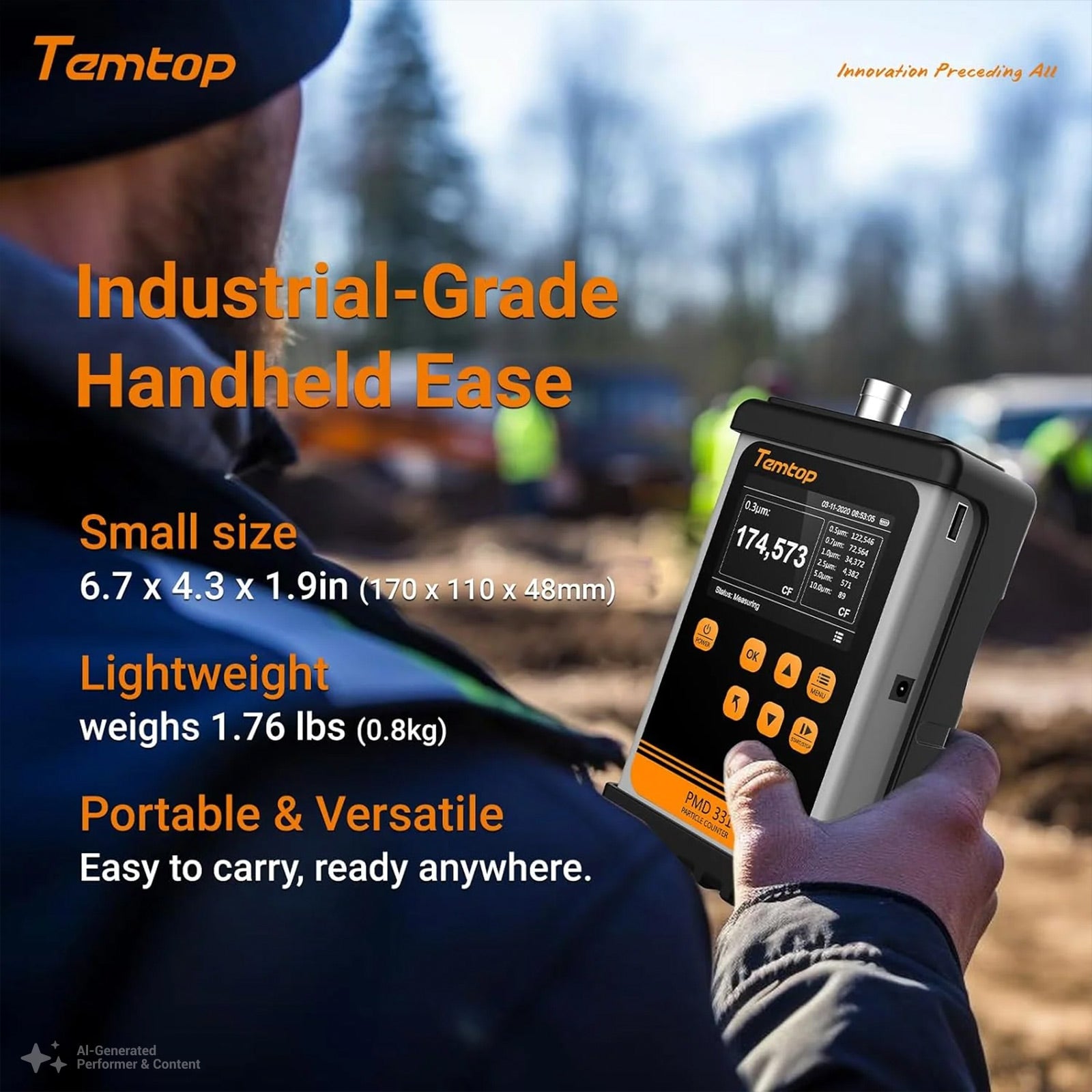

    Dimensions: 6.69*4.33*1.97 Inches

    User Manual
    ISO 21501-4 Certificate
    CE Certificate
    Calibration Certificate
